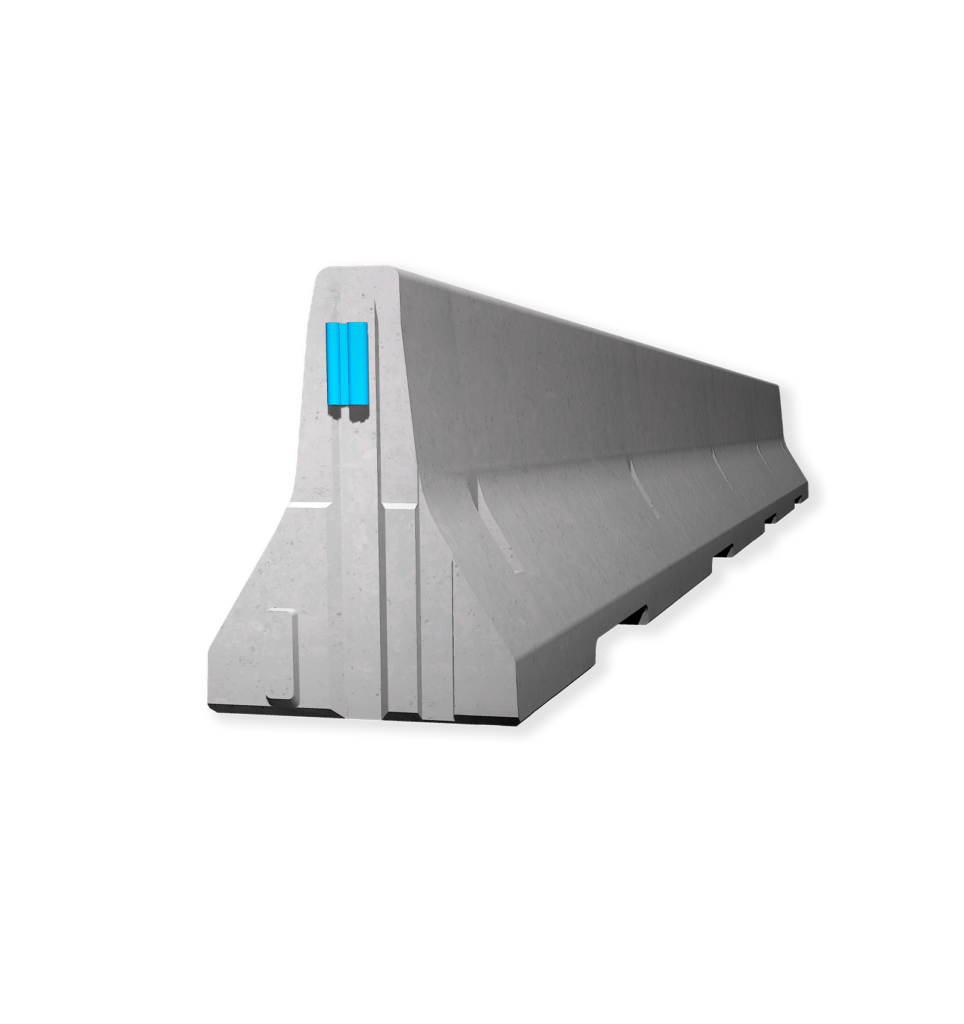

EN 1317
| Standard | EN 1317 |
|---|---|
| Applications | Road |
| Installation | Free-standing |
| Length | 800 cm |
| Width | 59 cm |
| Height | 80 cm |
| Weight / element | 4670 kg |
| Containment level | L2/H2 |
|---|---|
| Working width | W4 |
| Vehicle intrusion | VI3 |
| Installation | Free-standing |
| Installation details | free standing on asphalt | concrete |
| Initial / end anchorage | required (according to anchor chart 39-10501): e.g. REBLOC 80X_4T or force closure |
| Containment level | L2/H2 |
|---|---|
| Working width | W5 |
| Vehicle intrusion | VI4 |
| Installation | Free-standing |
| Installation details | free standing on compacted soil |
| Initial / end anchorage | required (according to anchor chart 39-10501): e.g. REBLOC 80X_4T or force closure |
